Name: Kingspec SSD msata 1tb
SKU: 120049049013865
Price: 77.68 EUR
Availability: InStock

Description

Quick Details

Item Condition:: New

Package:: Yes

Interface Rate:: 6Gb/s

Single Disk Capacity:: 1000GB

Weight(Including Package):: 100g

Shell Material:: Plastic

Has External Power Supply:: No

Expansion Port:: Sata 3.0

Products Status:: New

Application:: laptop,server,desktop,POS machine,mini PC,PAD

Type:: Internal

Style:: SSD

HDD Capacity:: 800GB – 1.5TB

Size:: 50mm*30mm*3.5mm

Interface Type:: mSATA

Brand Name:: KingSpec

Model Number:: MT-1TB

Place of Origin:: Guangdong, China

Wireless:: NO

Read speed:: 540MB/S

Write speed:: 500MB/S

Storage temperature:: -40°C~85°C

MTBF:: 1000000 Hours

Packing:: Bulk Packing/Gift Box

Warranty:: 3 Years

Certification:: FCC,CE,RECH,RoHS,ISO9001

Flash type:: 3D NAND

Lead time:: 3-5 Working Days

OEM/ODM:: 300-500 MOQ Support

Industrial grade:: Support

Power consumption:: 1.4W

Kingspec SSD msata 1tb

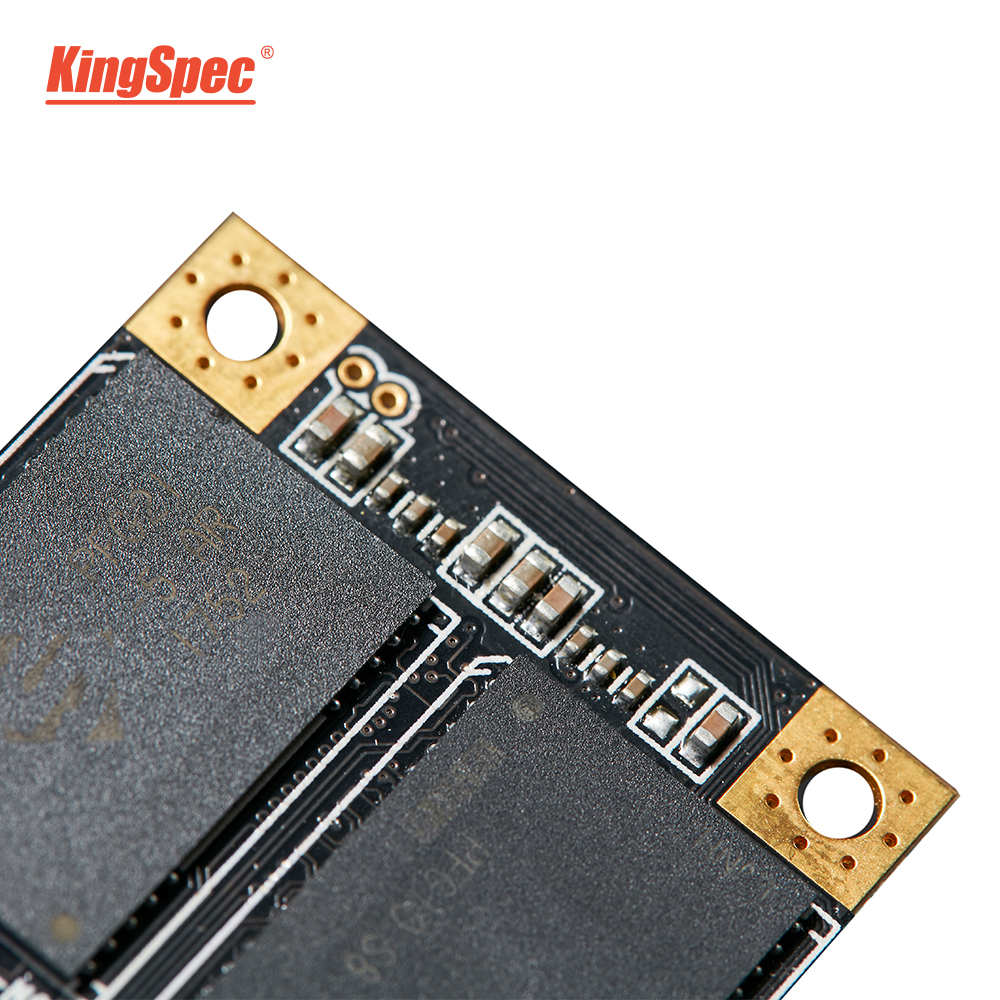

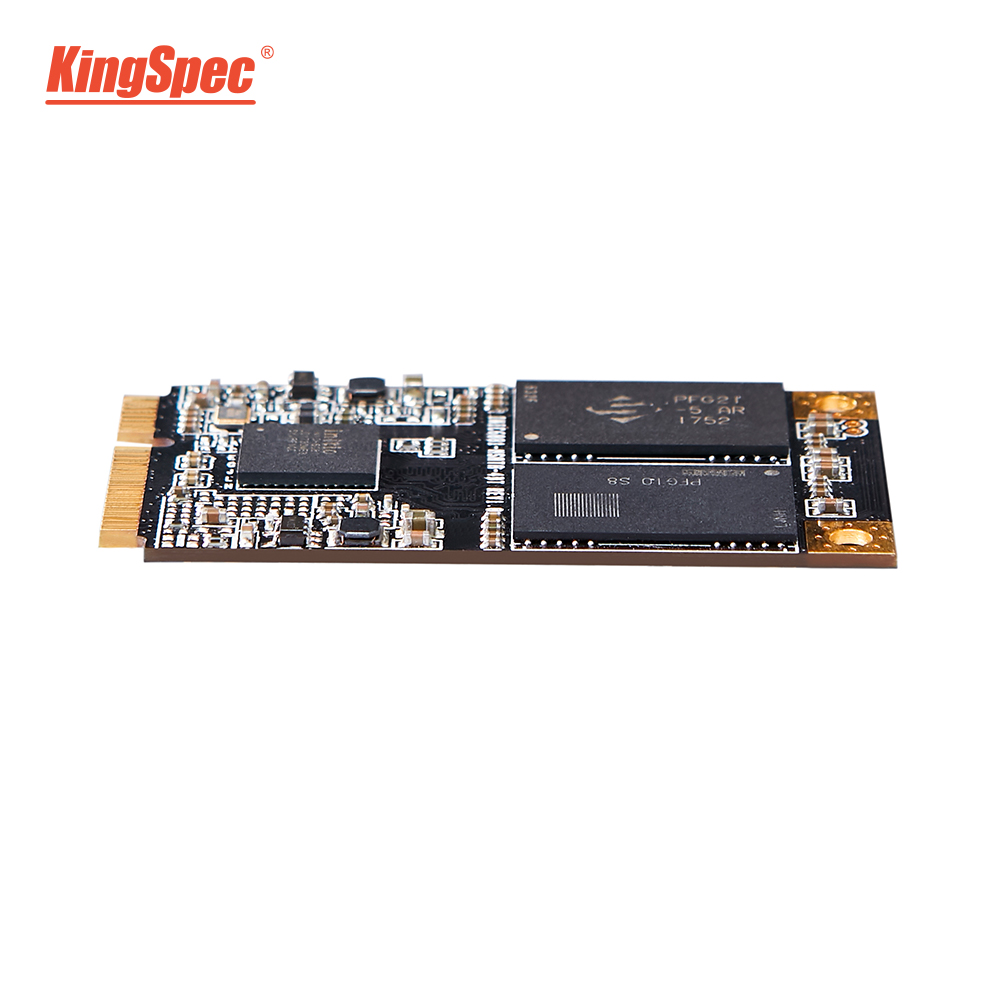

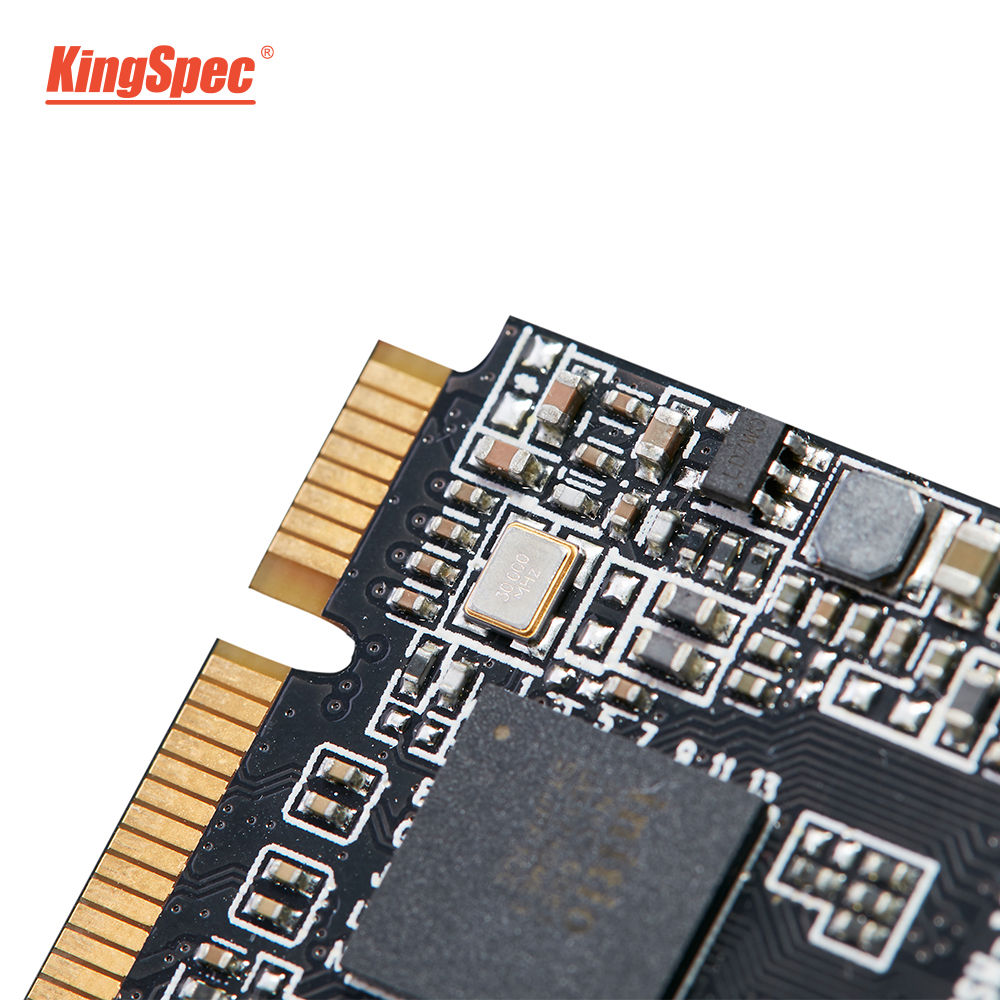

Product display

Product details

Model	MT-1TB
General	Form factor	50.0×30.0×3.5mm+0.5mm
General	Interface	M.2 Support Serial ATA Revision 3.0 Backward compatible SATAⅡ
Performance	Capacity	1TB
	Sustained Read	500~550MB/S
	Sustained Write	450~500MB/S
	4KB Random Read IOPS	83700
	4KB Random Write IOPS	66900
	Average Access time	0.04ms
OS support	Windows XP,Windows 7,Windows 2003,Windows 2008,DOS,Linux,Unix
Storage Media	NAND Flash	3D TLC
Power Consumption	input Voltage	DC 3.3V±5%
	Idle	0.65W \|0.68W\|0.7W\|0.7W
	Active	1.28W\|1.32W\|1.38W\|1.5W
Reliability& Endurance	Write endurance	8Years @100GBytes write and erase per day
	Read endurance	unlimited
	Wear-Leveling Algorithm	Dynamic and static wear-leveling
	Data Retention	10years at 25ºC
	MTBF	1,000,000hours
	ECC	Hardware LDPC ECC capable of correcting errors up 2K Byte
	Bad Block Management	Auto Bad Block Management in system
Environment	Operating Temperature	Commerical Grade:0~70℃ Storage temperature : -20°C ~ +75°C
Environment	Operating Humidity	5-95% RH non-condensing
Warranty	TLC:3years
Software and Management	Trim support	Yes
	Smart support	Yes
	NCQ support	Yes
	RADIO support	Yes
Available unit	Available	NO EOL
Testing Platform	CPU: Intel® Core(TM) i5-2400 CPU @ 3.10GHz Chipset: Intel® Z68 Express Chipset Memory: Kingston KHX1600C9D3C1K2/4GX OS: Microsoft Windows 7 Professional 64-bit AHCI Driver: Server Express Chipset SATA AHCI Controller BIOS Settings: AHCI Mode
Testing Software	Crystal Disk Mark 5.2 HD Tune Pro5.0 ATTO Disk Benchmark IOmeter 2008 AS_SSD Benchmark
Physical Dimensions & Weight	Height(mm)	3.5
	Width(mm)	30.0
	Length(mm)	50.0
	Weight(g)	TDB
